ASTM D638 Explained: Everything You Need to Know About Plastic Tensile Testing

How to follow ASTM D638 for plastics tensile testing step by step

ASTM D638 is the internationally recognized standard method for determining the tensile properties of plastics. Whether you're testing materials for product development, regulatory compliance, or quality control, understanding and correctly applying this method is essential for accurate, consistent results.

This comprehensive guide walks you through the full D638 testing process, including specimen setup, testing equipment, extensometer options, material compatibility, and the data you can expect to collect. It also includes integrated examples of how CubeTen automates and improves each step.

Official Standard: Click here

What Does ASTM D638 Measure?

ASTM D638 is used to evaluate the tensile behavior of plastics under uniaxial stress. The method measures:

  • Tensile strength (at yield and break)
    Tensile strength is the maximum force a material can withstand while being stretched. At yield, it’s the point where plastic deformation begins. At break, it’s the point where the specimen physically fractures.
  • Strain and elongation at break
    Strain is the percentage change in length during testing. Elongation at break shows how much the material stretches before failure. It’s a key indicator of ductility and flexibility.
  • Modulus of elasticity (Young’s modulus)
    This measures a material’s stiffness — how much it resists deformation under load. It’s calculated from the slope of the linear portion of the stress-strain curve. Higher modulus = stiffer material.
  • Yield strain
    Yield strain is the amount of strain a material experiences at the yield point. It marks the transition from elastic (reversible) to plastic (permanent) deformation. Beyond this, the material won’t return to its original shape.
  • Stress-strain behavior
    This curve shows how a material responds to tension from start to failure. It visually represents strength, elasticity, yield, and fracture behavior. It’s the most comprehensive snapshot of material performance under load.

This data helps engineers, product designers, and quality assurance teams ensure that materials meet performance expectations under load.

When Should You Use ASTM D638 or ISO 527-2?

ASTM D638 is applicable when testing:

  • Rigid and semi-rigid thermoplastics
  • Thermosets
  • Reinforced plastics
  • Injection-moulded or machined plastic parts

It is the go-to tensile test method for most quality control and product development processes involving plastics, particularly in North America.For international or globally aligned applications, ISO 527-2 is a closely related standard. It outlines a similar methodology for determining the tensile properties of plastics and is commonly referenced in Europe and other regions.

How to efficiently Perform a Tensile Strength Test on Plastics (ASTM D638/ISO 527-2)

Performing a tensile strength test according to ASTM D638 (or ISO 527-2) involves a clear, repeatable sequence, especially when using an automated system like CubeTen. Below is the typical workflow:

Loading your samples
Simply load up to 15 tensile samples, with your choice of mixed compounds and different materials.
Loading your samples
Start the Test
Launch the ASTM D638 or ISO 527 method from the touchscreen. CubeTen pulls the specimen to fracture while recording real-time load, displacement, and strain data.
Review your data
Measure and Grip Automatically
CubeTen’s vision system measures specimen width, and calibrated sensors capture thickness automatically for full dimensional compliance.
The specimen is then secured with a consistent gripping force. No operator intervention needed.
Starting the test
Capture and Export Results
Stress-strain curves, tensile strength, modulus, and elongation are captured instantly. Data is available immediately for review in the LabsCubed Portal or export to your LIMS, ERP, or QA system.
Review your data

This workflow removes operator variability and dramatically reduces time per test, while ensuring full compliance with ASTM and ISO testing standards.

Equipment Requirements

A system configured for ASTM D638 must include:

  • A tensile frame with controlled crosshead speed
  • A calibrated load cell appropriate to expected failure loads
  • Proper grips to hold the specimen without slippage or damage
  • A strain measurement system (extensometer)
  • Accurate thickness and width measurement tools

It is the go-to tensile test method for most quality control and product development processes involving plastics, particularly in North America.For international or globally aligned applications, ISO 527-2 is a closely related standard. It outlines a similar methodology for determining the tensile properties of plastics and is commonly referenced in Europe and other regions.

Extensometer Options for ASTM D638

CubeTen supports three extensometer technologies — all optimized to meet the accuracy and compliance requirements of ASTM D638 and the equivalent international standard, ISO 527.

TypeDescriptionUse Case
Crosshead DisplacementBuilt-in, calibrated displacement system for basic strain measurements.Low/High-elongation materials or quick tests.
Automated Physical ExtensometerTracks specimen elongation during testing using mechanical gauge arms.Rigid plastics where high repeatability and accuracy are needed.
Video ExtensometerNon-contact, high-resolution strain tracking across the gauge length.Delicate samples or high-elongation materials.

ASTM D638 Specimen Types

ASTM D638 defines five specimen geometries, with Type I and Type IV being the most commonly used.

HeaderThicknessWidthLengthUse Case
Type I3.2 mm13 mm165 mmStandard for rigid plastics
Type IV2.0 mm6 mm115 mmThin plastics and films

CubeTen is optimized to handle both types through automated gripping, alignment, and extensometer placement.

Specimen Reference: https://www.astm.org/d0638-14.html

Specimen Measurement & Alignment

Why it’s important

For a tensile test to be accurate and repeatable, each specimen must be measured and aligned correctly. Even minor errors can lead to:

  • Uneven load distribution
  • Premature specimen failure
  • Incorrect strain and modulus data

How CubeTen ensures precision

  • CubeTen automatically measures the width and thickness of each sample using calibrated sensors. No manual tools needed.
  • Measurements happen instantly during the loading stage, saving time and improving consistency.
  • A built-in smart vision system detects the edges of each specimen, including those with different colours or surface finishes.
  • The system auto-aligns each sample in the grips with precision, using self-centering mechanisms and alignment verification.

Data Review, Integration, and Consistency

All test results can be reviewed, compared, and exported via the LabsCubed Portal, which offers:

  • Interactive stress-strain visualization
  • Batch testing reports and comparisons
  • Integration with LIMS, ERP, or external systems via API
  • Direct data export (CSV, PDF)

With CubeTen, results are consistent and repeatable, even across shifts or operators, a critical factor for high-throughput labs or multi-site operations. In traditional vertical testing machines, manual handling introduces variability at nearly every step:

  • Slight differences in how operators position specimens in the grips can lead to misalignment
  • Inconsistent gauge length marking and measurement affect strain accuracy
  • Variations in grip pressure or clamping technique can cause premature slippage or breakage

Each of these issues contributes to test-to-test variation, even with calibrated equipment. Beyond data variability, these repetitive setup steps consume valuable operator time, time that could be redirected toward analysis or higher-value tasks.

CubeTen automates alignment, gripping, and measurement, eliminating these sources of human error and delivering precise, standardized inputs across every test. This not only boosts consistency but also maximizes lab efficiency through automation.

Looking to automate ASTM D638 tensile testing?

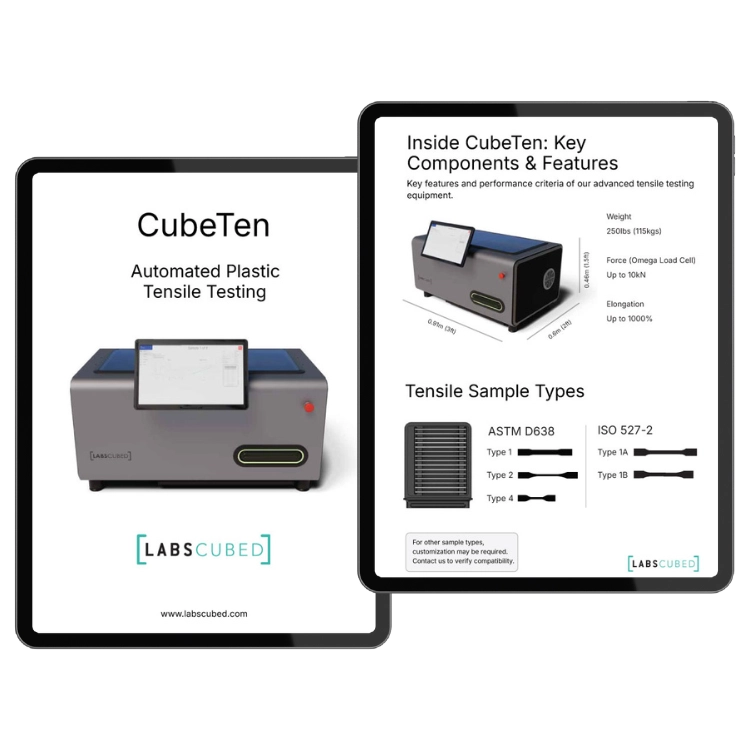

Download the CubeTen brochure to discover how automation can help your lab save time on repetitive tasks, reduce data variations, and let your team focus on the work that really matters.
